| E-Alpha (Euro 5) Inquiry |
Specifications
| Dimensions | |
| Length×Width×Height | 1900mm ×770mm ×1190mm |
| Wheelbase | 1400mm |
| Min.Ground Clearance | 170mm |
| Seating Height | 800mm |
| Framework | |
| Front Shock Absorber | Oil Damping Direct Acting Shock Absorber |
| Rear Shock Absorber | Oil Damping Direct Acting Shock Absorber |
| Front/Reae Tire Spec | 120/70-12 front Rim:2.75-12 rear rim:3.5-12 |
| Front Braking Mode | 220mm Dual-Piston Hydraulic Disc Brake |
| Rear Braking Mode | 190mm Dual-Piston Hydraulic Disc Brake |
| Swinarm | Die casting of aluminum alloy |
| Frame material | High quality carbon steel |
| Max payload | 245Kg |
| Battery | |
| Battery Unit | Lithium Battery |
| Voltage | 72V |
| Capacity | 30Ah |
| Standard Charging Current | 5A-10A |
| Standard Discharging Current | 10A |
| Max.Discharging Current | 50 A |
| Performance | |
| Climbing | 30% |
| Accelerate（0-25/0-45） | 5S/9S |
| Charge Time | 6H(5A charger ) |
| Power System | |
| Maxium Speed | 25 Km/h, 45Km/h |
| motortype | Hub motor |
| Rated power | 2000W,EEC R85 test standard |
| Maximum power | 3600W(input)-3100W(output) |
| MAX torque | 130N.M 100RPM |
| Motor Control Solution | FOC |
| Certificate | |
| EEC | L1e-B |
Features
1. Patented design;
2. Front & Rear Oil damping shock
3. 12 inch tyre
4. Front and rear hydraulic disc brake;
5. Front and Rear aluminum wheels;
6. Removable lithium battery
7. 25km/h, 45km/h COC
8. 5A fast charger;
9. LED front lamp and LED signal lamps,LED rear lamp

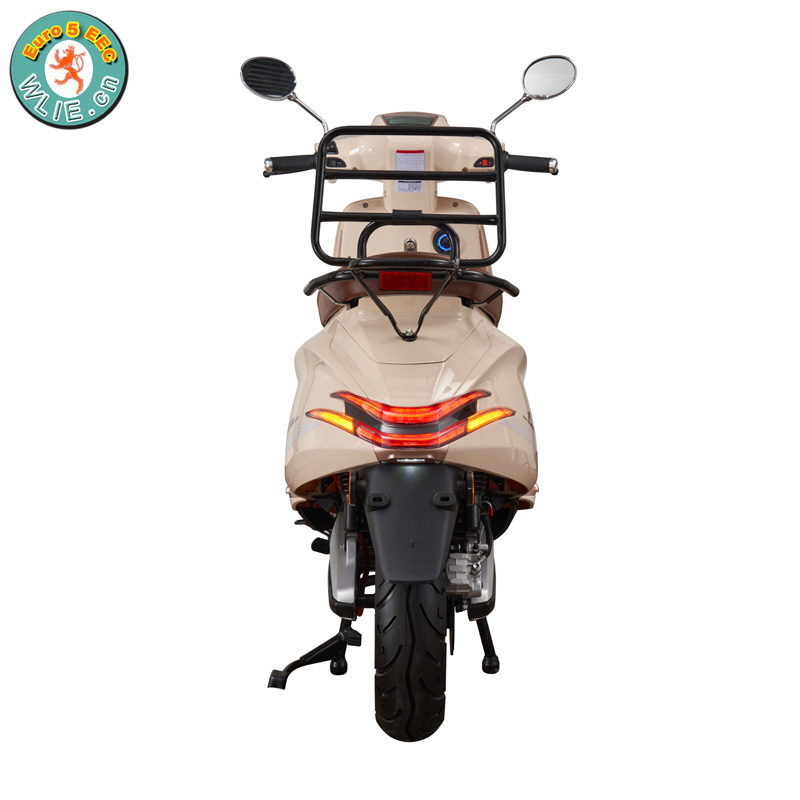

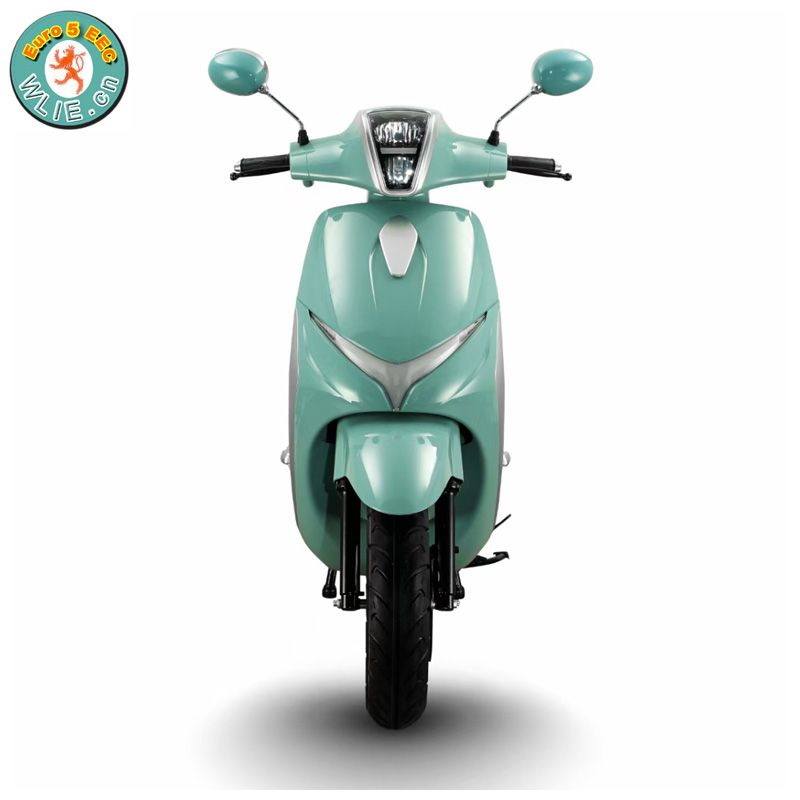

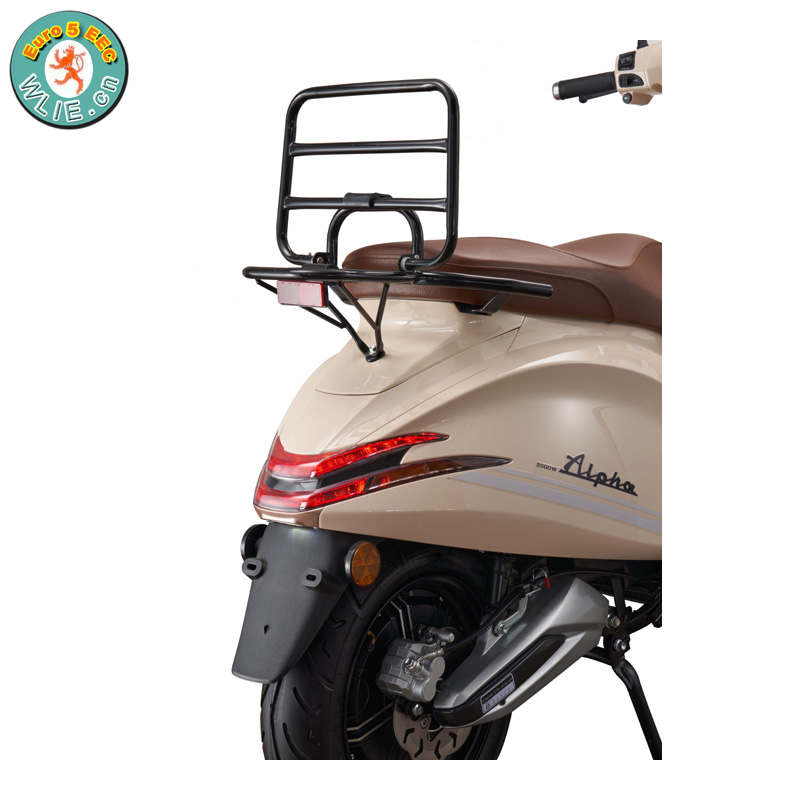

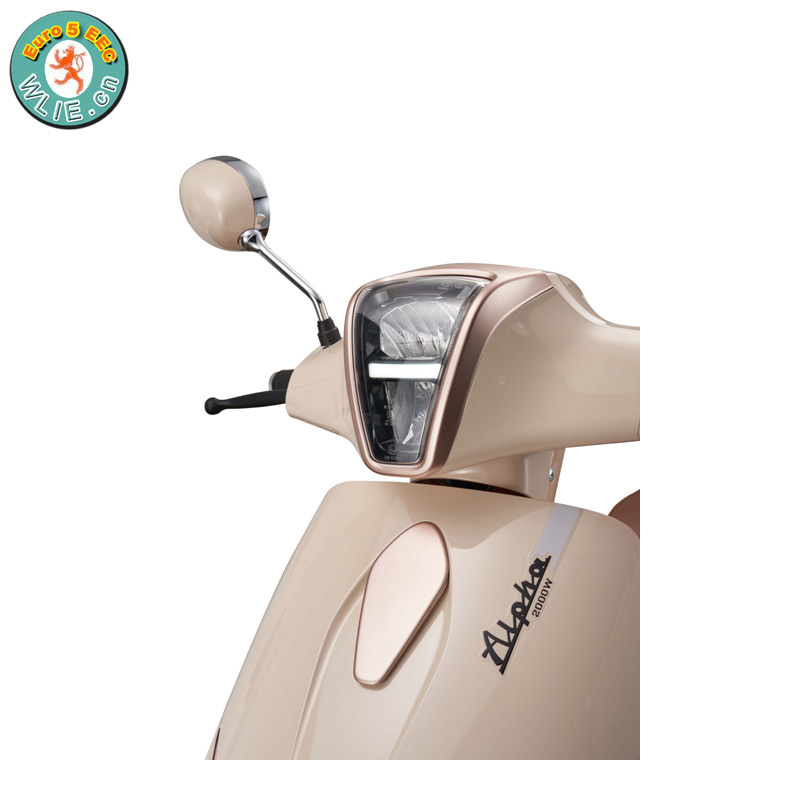

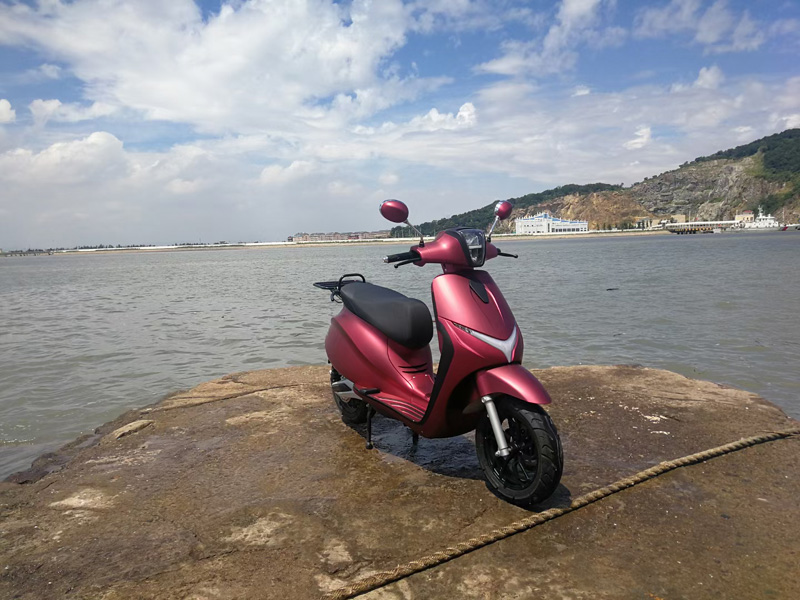

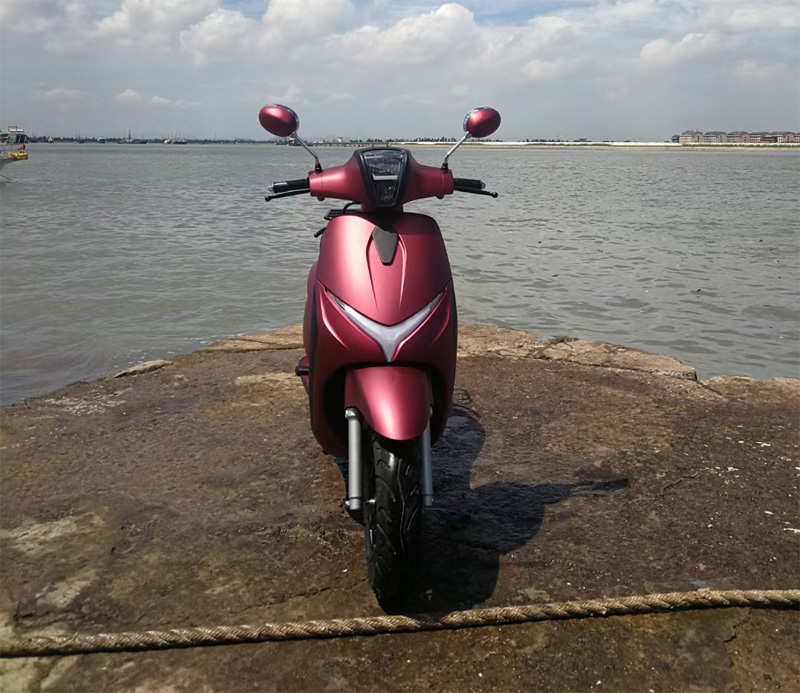

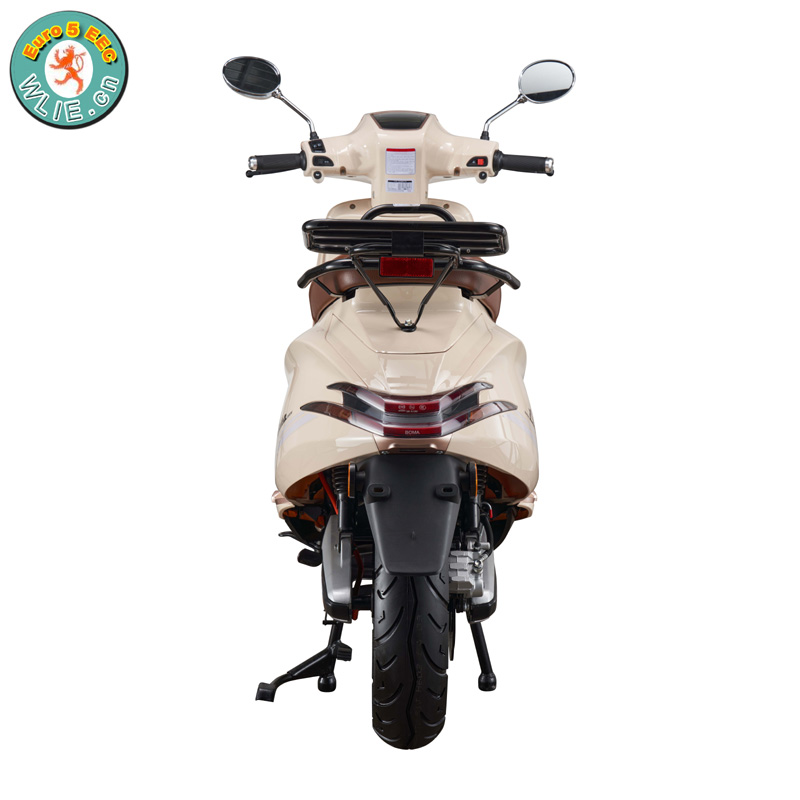

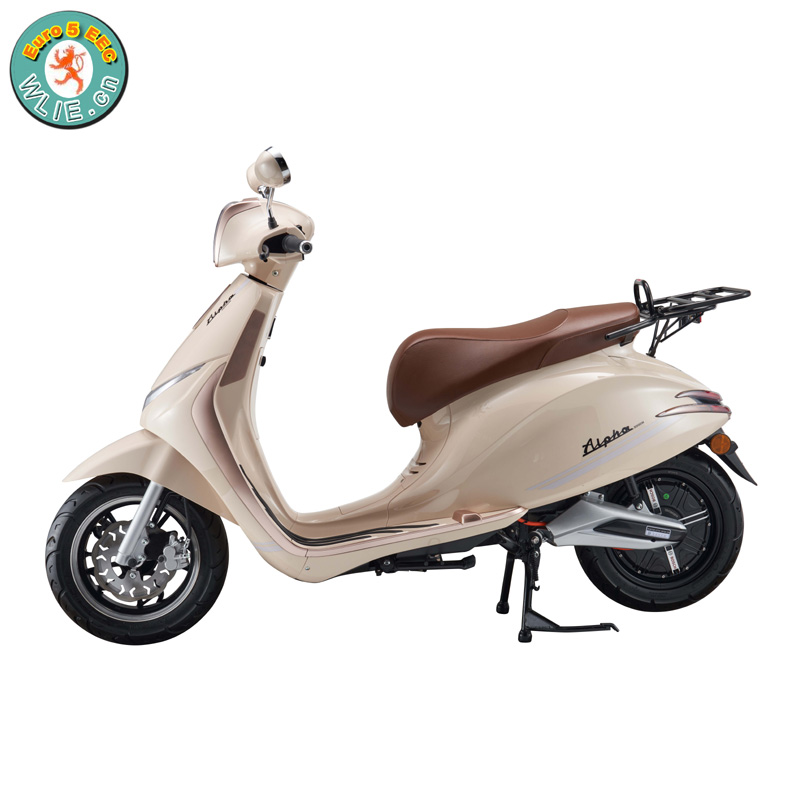

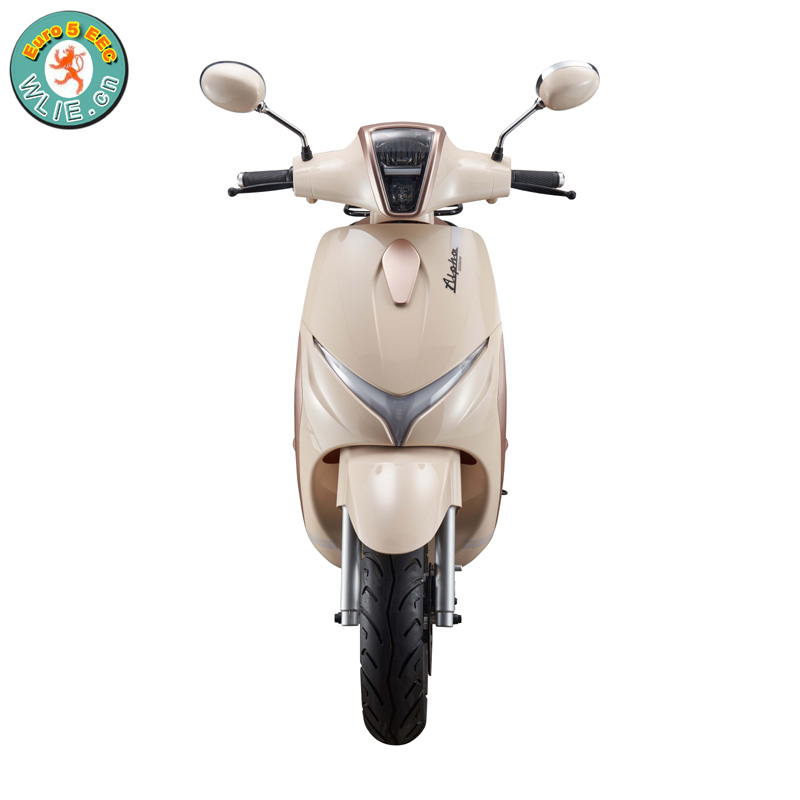

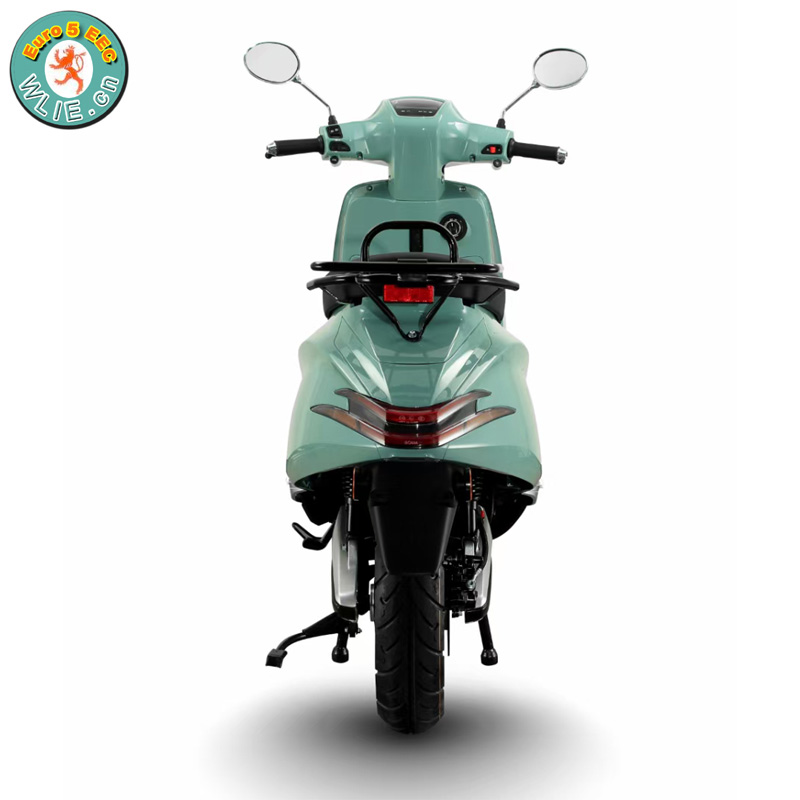

Multi-angle pictures
|
 |
 |
 |
 |
 |
 |
 |
 |

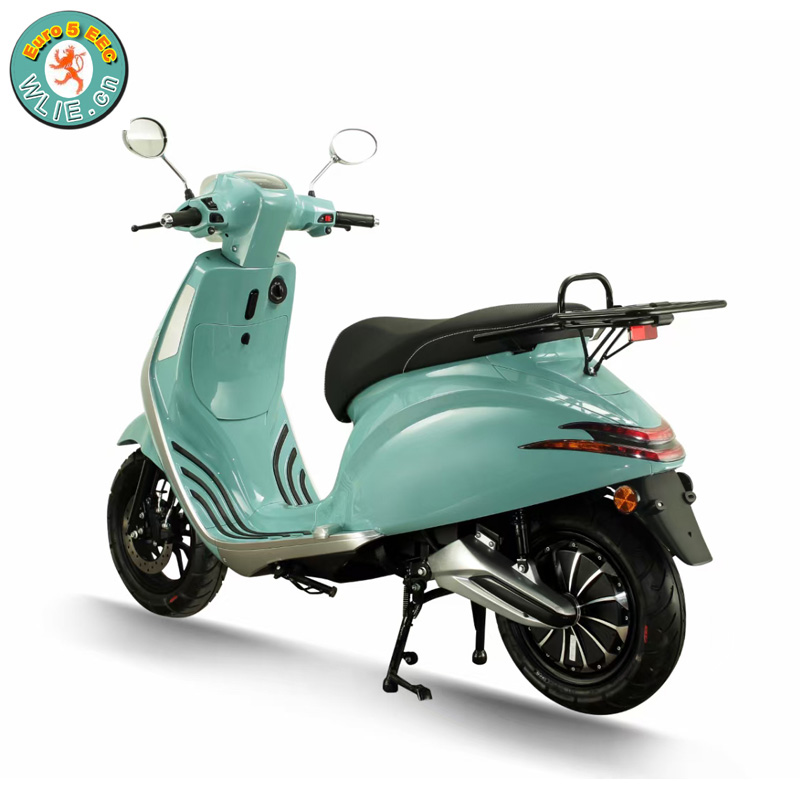

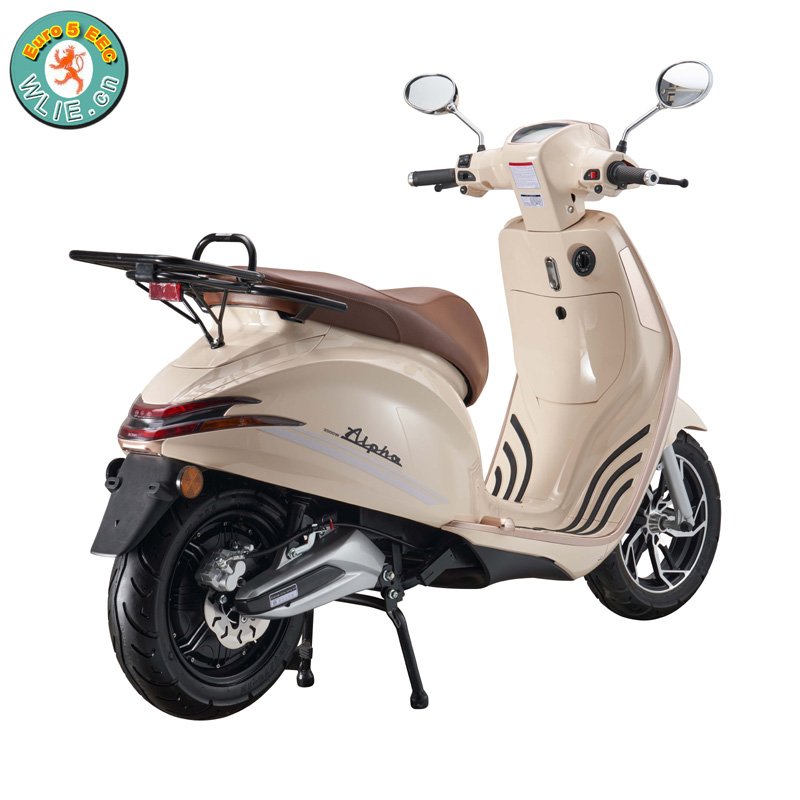

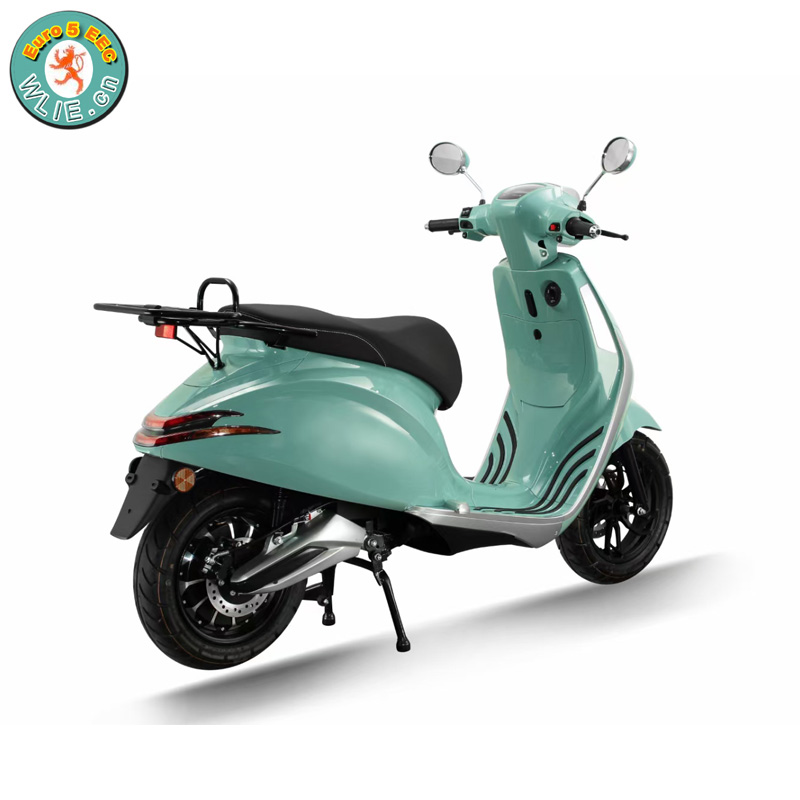

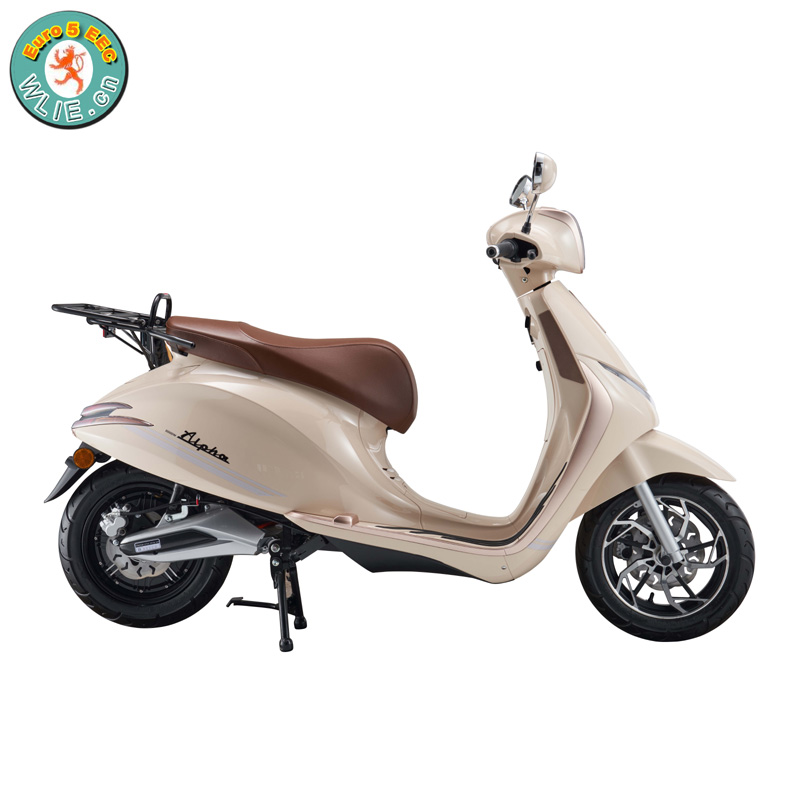

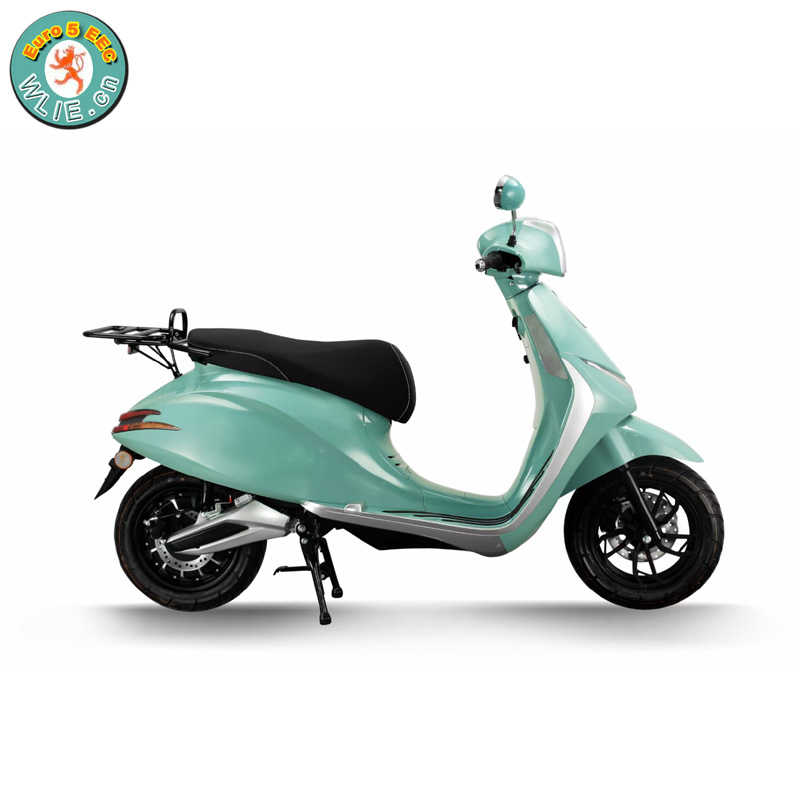

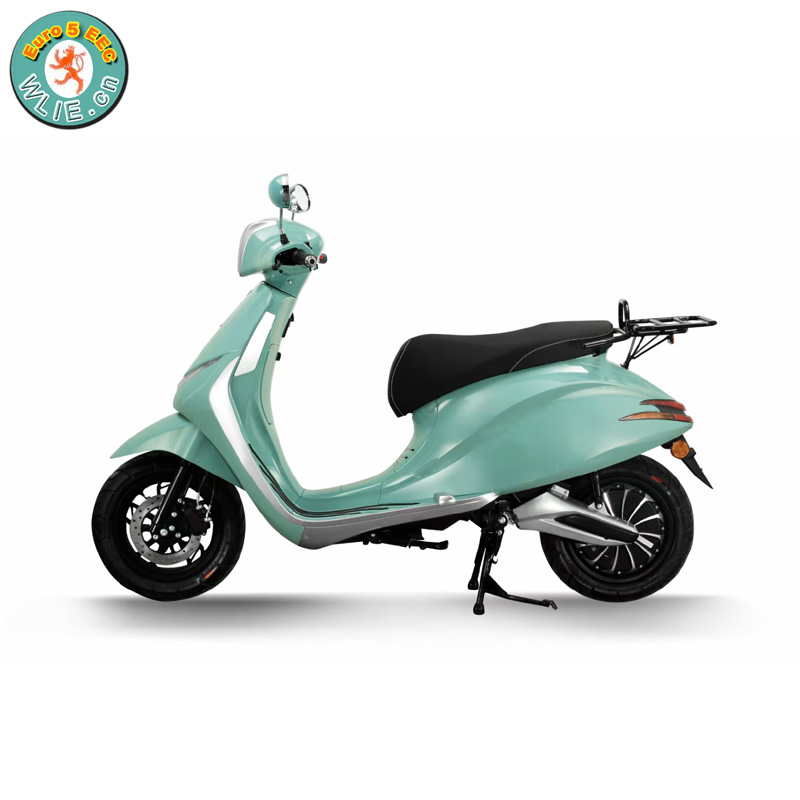

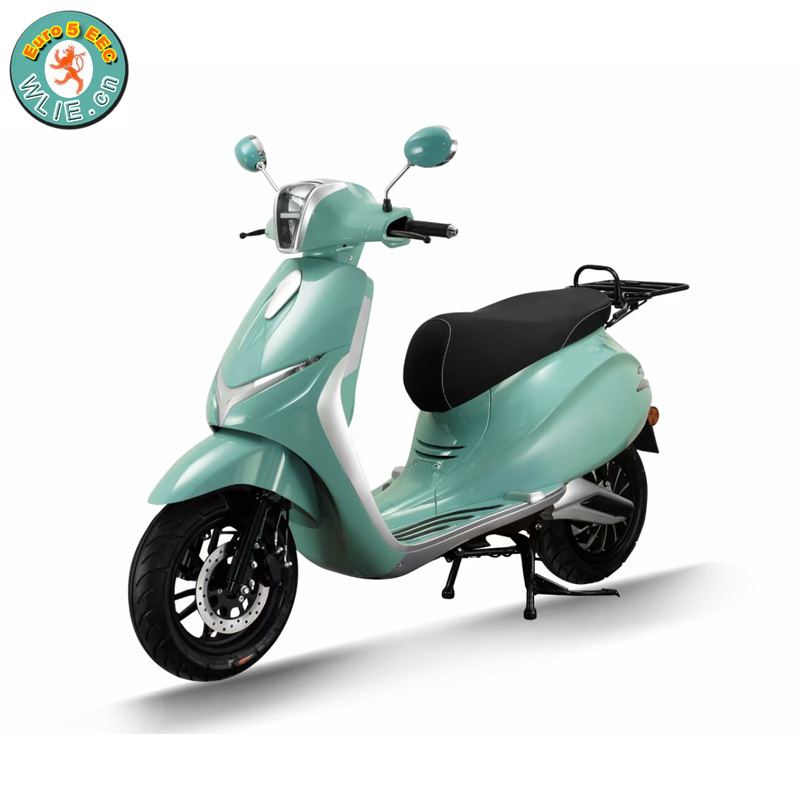

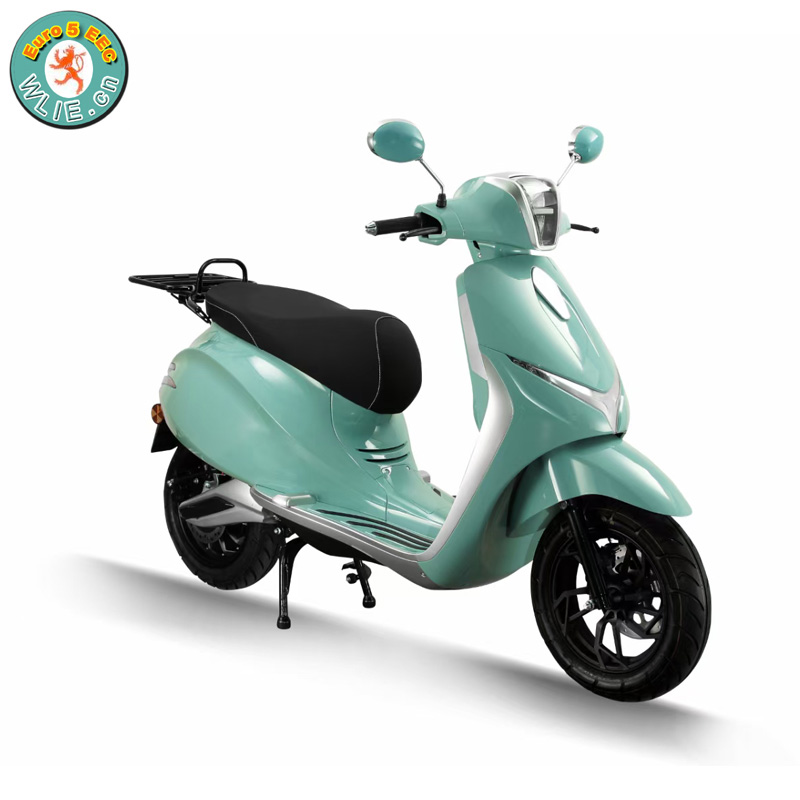

Different color pics
 |
 |
 |
 |
 |
 |
 |
 |
More Pics
 |
 |
 |
 |

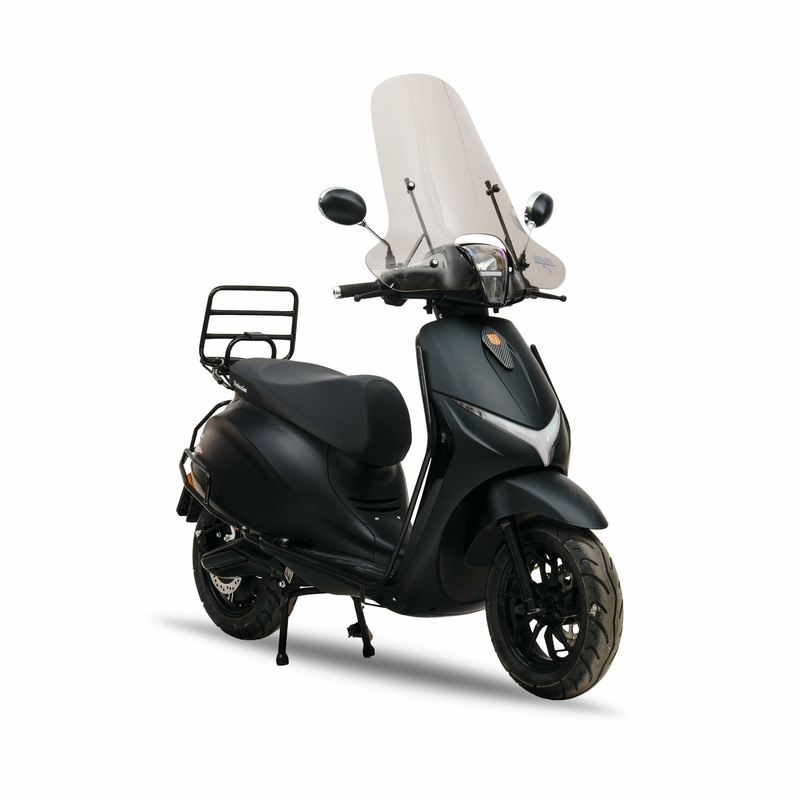

With Accessories
Certificate
