HAMMER 200 (Euro 5) Inquiry
Specifications

ItemSpecs
Engine Mode162FMK-2
Engine TypeSingle Cylinder, 4 Stroke, Air Cooled
Displacement(ml)176
Max.Power(kw/r/min)9Kw/8000rpm
Max.Torque (N.m/r/min)13N.m/6000rpm
Compression Ratio9.51
Bore and Stroke(mm*mm)62*58.4 mm
Ignition methodCDI
Starting methodElectric Start
Gearshift MethodF+N+R, CVT
Driving MethodChain Drive
Size: L*W*H1760*1040*1120
Axle Distance / Wheel Distance1150mm / 860mm
Height Height860 mm
Ground Clearance290 mm
Max SpeedHAMMER A:40km/hHAMMER B:60km/h
BrakeDisc/Disc
WheelIron Wheel 10 inch
TyreFront:21*7-10; Rear:22*10-10
Fuel Tank9.7 L
Net Weight197 kgs
Packing Carton1700*1130*820mm
Qty/Container42 units/40HQ



Selling Points of the product

1. Certificate: Euro 5 EEC/COC approved

2. Engine: 200cc

3. Gear: CVT with Reverse Gear

4. Seat: a new long seat for 2person (comfortable & humanized)

5. Packaging: 7 layersshipping carton with strong iron frame

6. Colors painting samefinishing as car's, painted by our own paint-workshop, fully controlled quality.

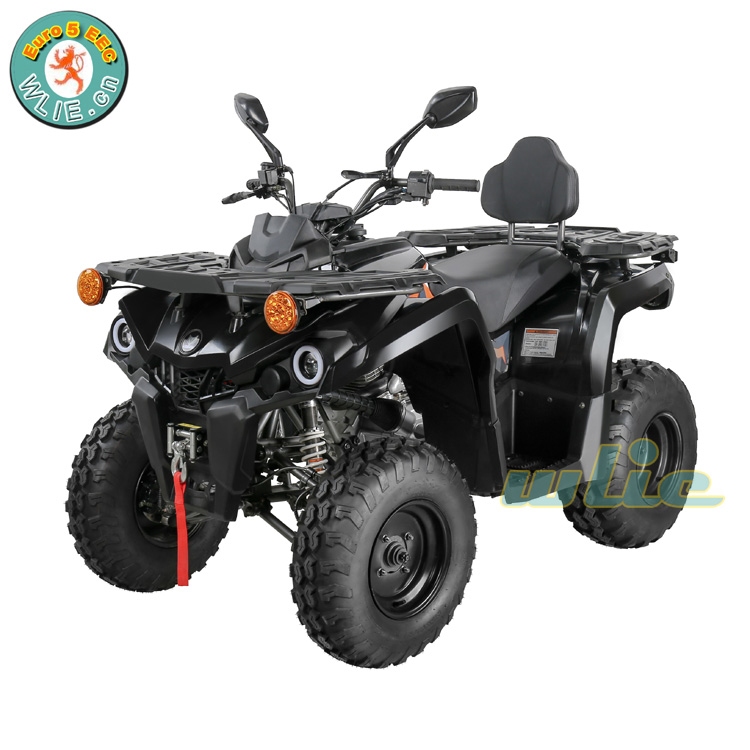

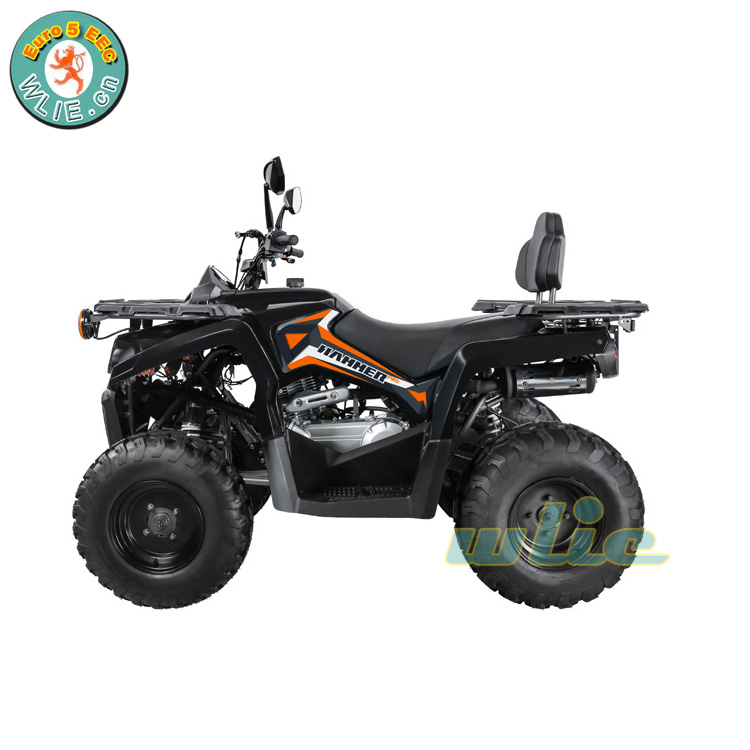

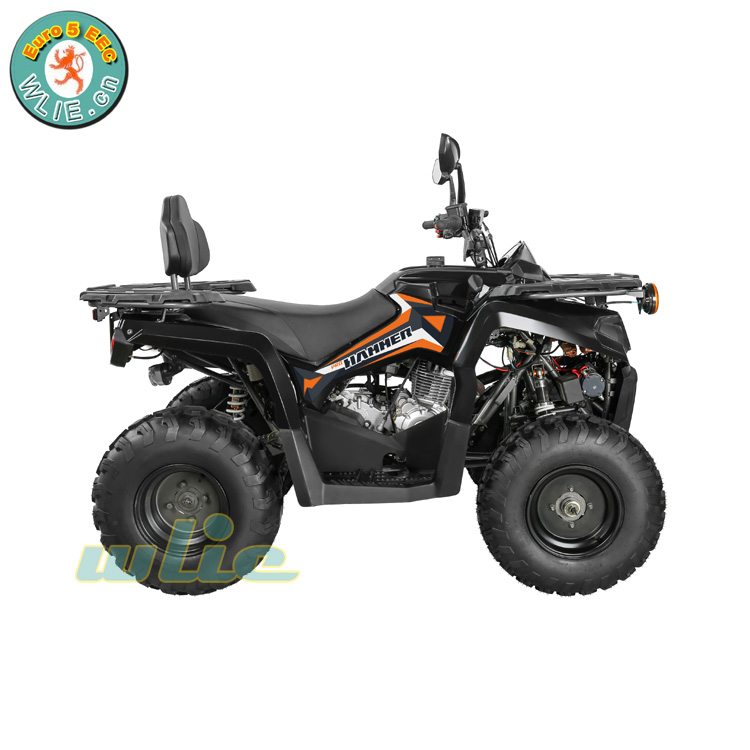

Multi-angle pictures of the product



Product certificate

Euro 4 EEC Homologation
