R8 50 (Euro 5) Inquiry
Specifications

With EFI system, Euro 5 EEC Homologated.



Specification

Drive system

Belt drive

Front and rear shock

Front hydraulic rear spring shock

Electric and speedmeter

Eight level direct current , 12V7A battery,speedmeter(speed,mileage,fuel tank capacity)

Lighting system

Front headlamp,front winker, rear tail light , front position lamp

Exhaust system

Mute exhaust

Switch control system

Function left and right swtich

Cylinder diameter

39mm

Piston stroke

41.4

Battery type

12V7A

Max power and rotate speed

2.2KW(3.00HP)/7500rpm

Max torque and rotate speed

3.01/5000(N.m/rpm)

Minimum ground clearance(mm)

115

Compression ratio

10.2:1

Unladen mass(kg)

92

Load capacity(kg)

150

Economic oil consumption

≤2.0

Climbing capacity

Angle: 30 degrees

Minimum turning radius

1750MM

Speed change

V type belt stepless speed change



1. Selling Points of the product:

1,It canmatch multicolor and stickers

2,we can do 125C power, also do we can do  50CC and150CC models.

3,Front and rear vacuum tire :durable,fasten,balanced ,and beautiful. the tire is wear-resisting and aiti-explosion.

4,Disc brake has high safety performance and has no noise

5,The motorcycle can install rear box and rear carrier

6,City sport type unique patent design model

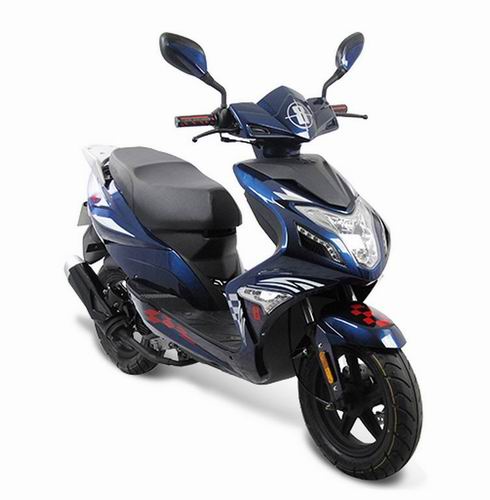

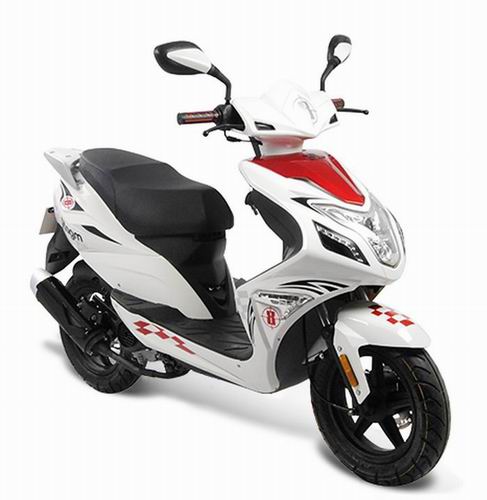

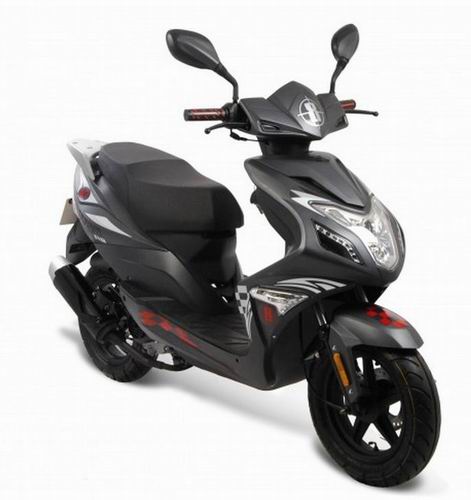

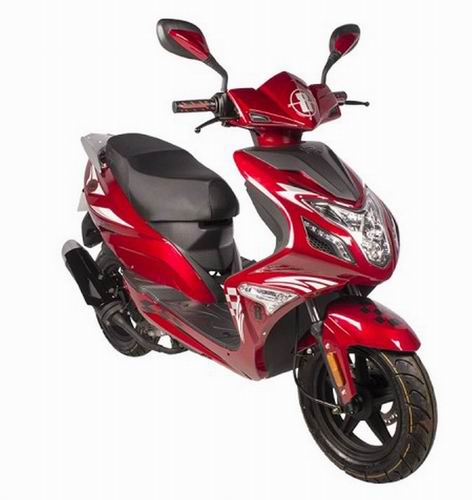

 2.Color sample of the product:

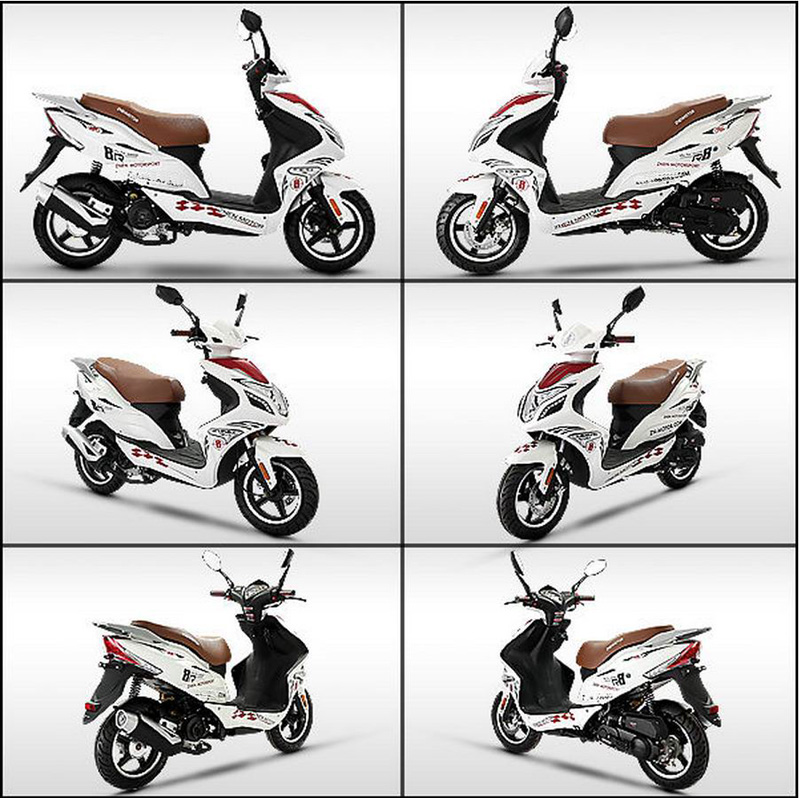

3. Multi-angle pictures of the product

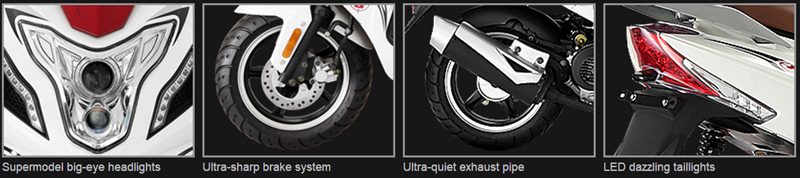

4. Detail photos of the product





5. Product certificate
